Ritchie Combie Clamp and EID

The Ritchie CombiClamp is a cracking bit of kit when it comes to handling sheep and provides restraint of the animal with easy access to back and front making jobs like dagging much easier. It is also possible to use the CombiClamp with a static EID reader and fit load bars and weigh scales, thus extending the functionality of the CombiClamp to hands free weighing and recording. This is then a very positive scenario as there is no excuse for not weighing your sheep when you have them in for a spot of treatment. Combining all tasks into one saves considerable time! FarmIT 3000 customers who have purchased the CombiClamp seem more than happy and we should be able to put you in touch with at least one of them for a chat.

Like all equipment it takes abit of getting used to and if you are weighing your sheep you do need to be careful just what you pick up. The reason for this is easy to understand. The load cells for weighing are positioned under the combi clamp and therefore the weight includes you (as the operator stands on the CombiClamp). It is of course easy to zero your weight out. However please remember that if you jump off, pick up a 5 Litre bottle of drench and then jump back on again, you need to re-zero out not only your weight but also the drench, otherwise you have a lamb that has just put on 5 Kilos in seconds.

Fitting EID

When it comes to fitting a static EID reader to a combi clamp it is not very difficult, the main issue being the position of the EID antenna so that it reads the correct animal and not the next animal.

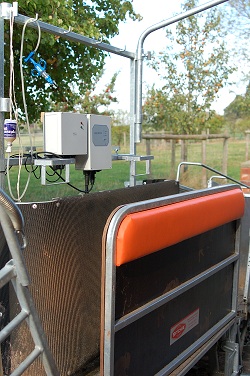

We position the EID reader panel on the back of the flexiable panel, this keeps the wires out the way and leaves the solid panel free to be removed.

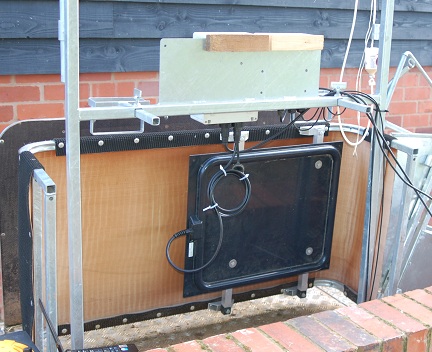

The antenna is fitted on two aluminium bars to ensure space is maintained between the antenna and the flexiable side when a animal is in the clamp. It also ensures that the steel frame does not effect the EID readers tuning.
